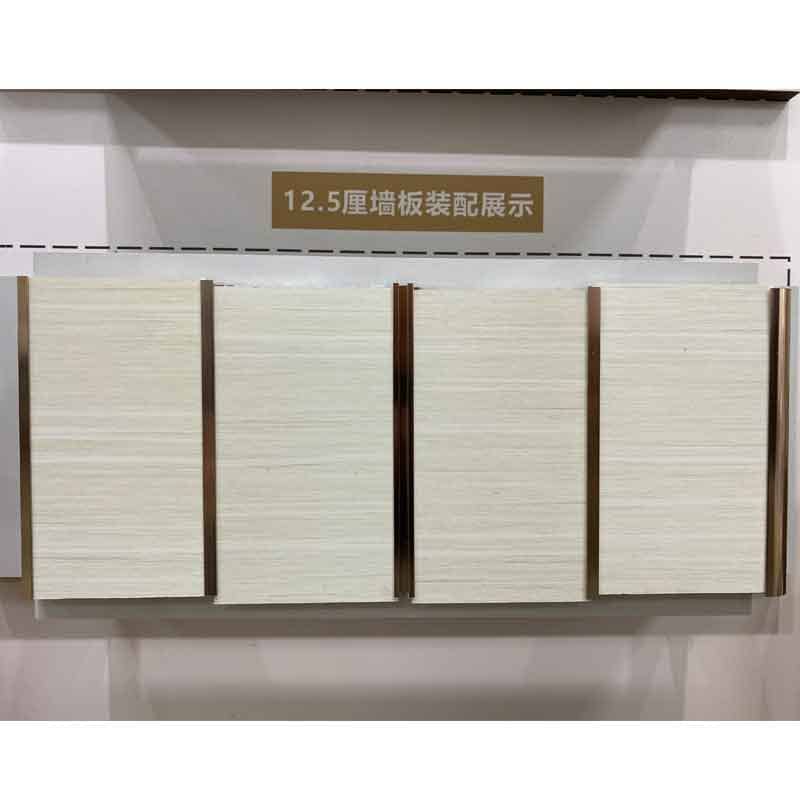

Aluminum wall panel
Contact customer service

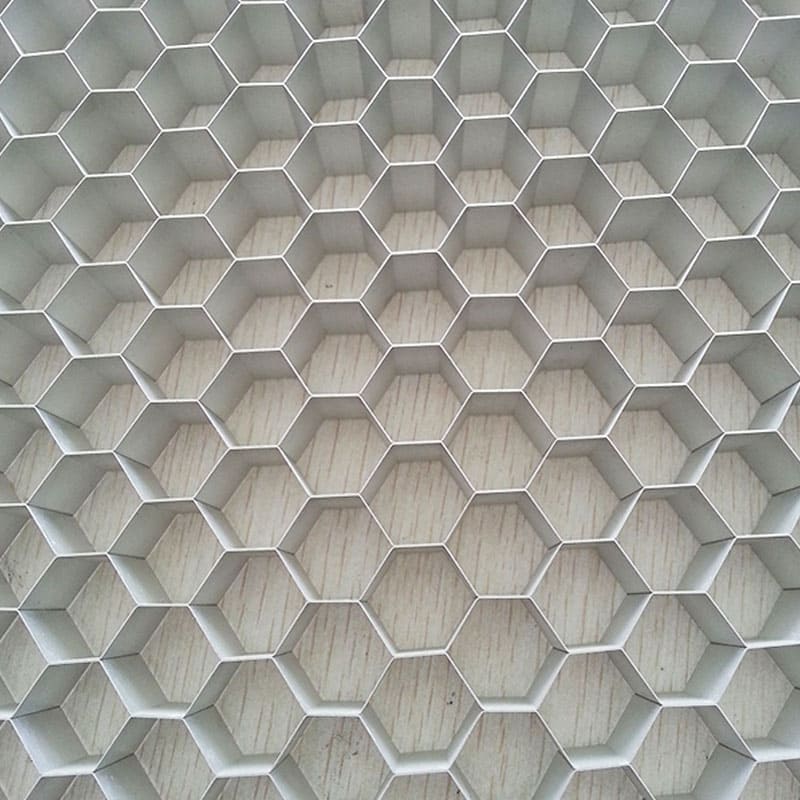

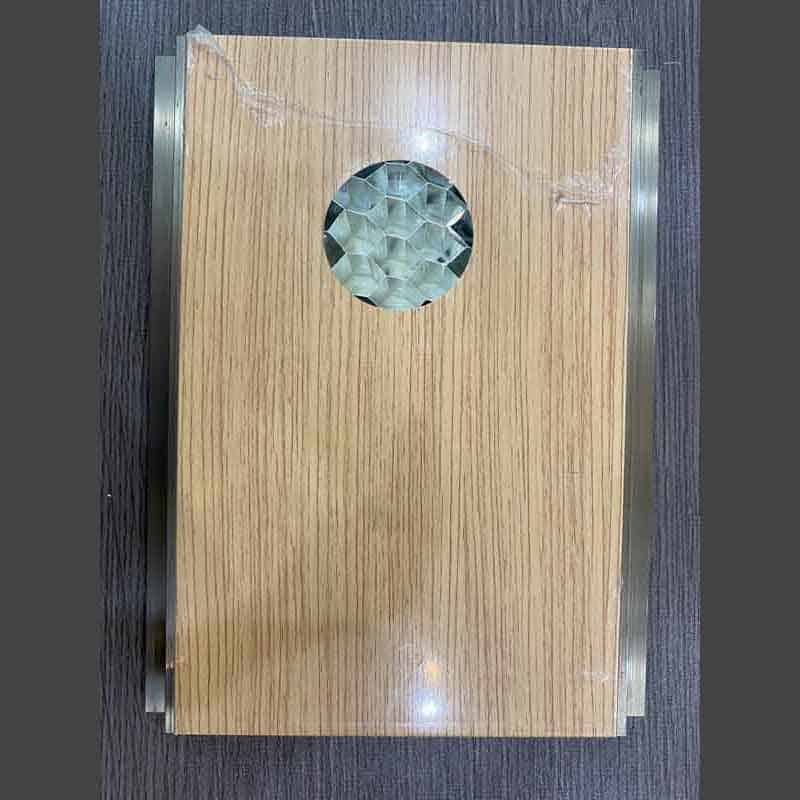

Aluminum metal panel; aluminum honeycomb core filling.

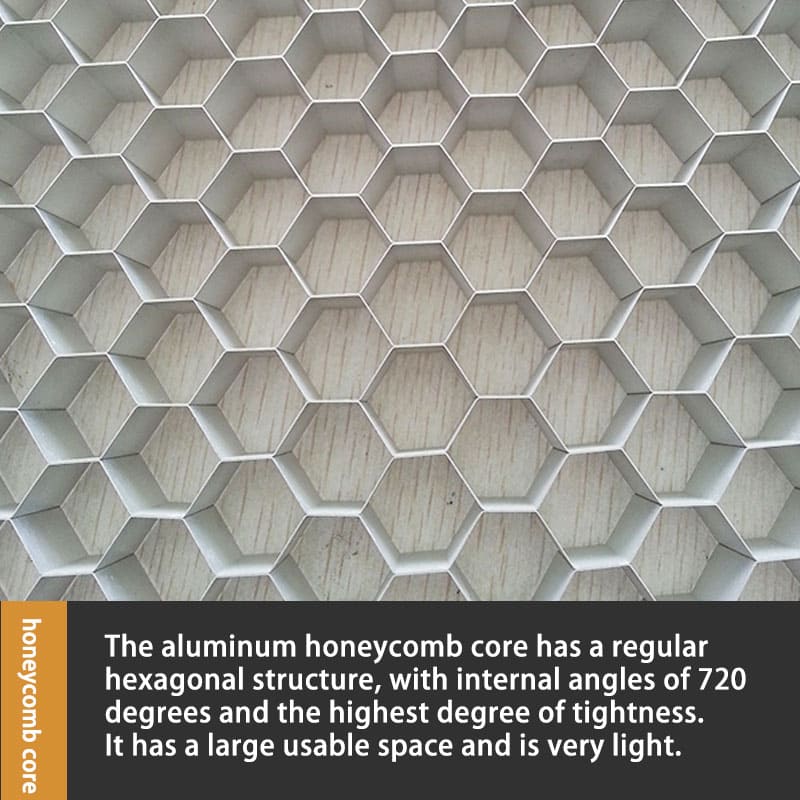

Aluminum honeycomb core has a large usable space and is very light, meanwhile it is durable and sturdy.

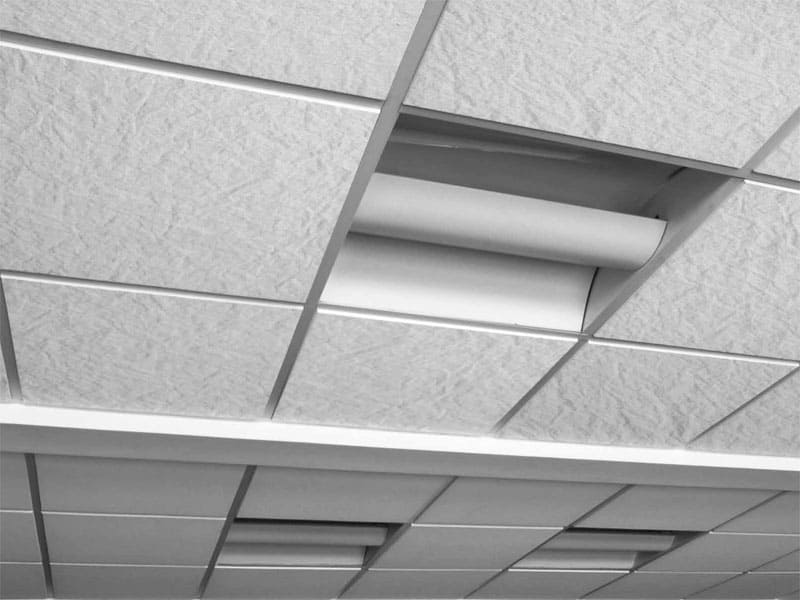

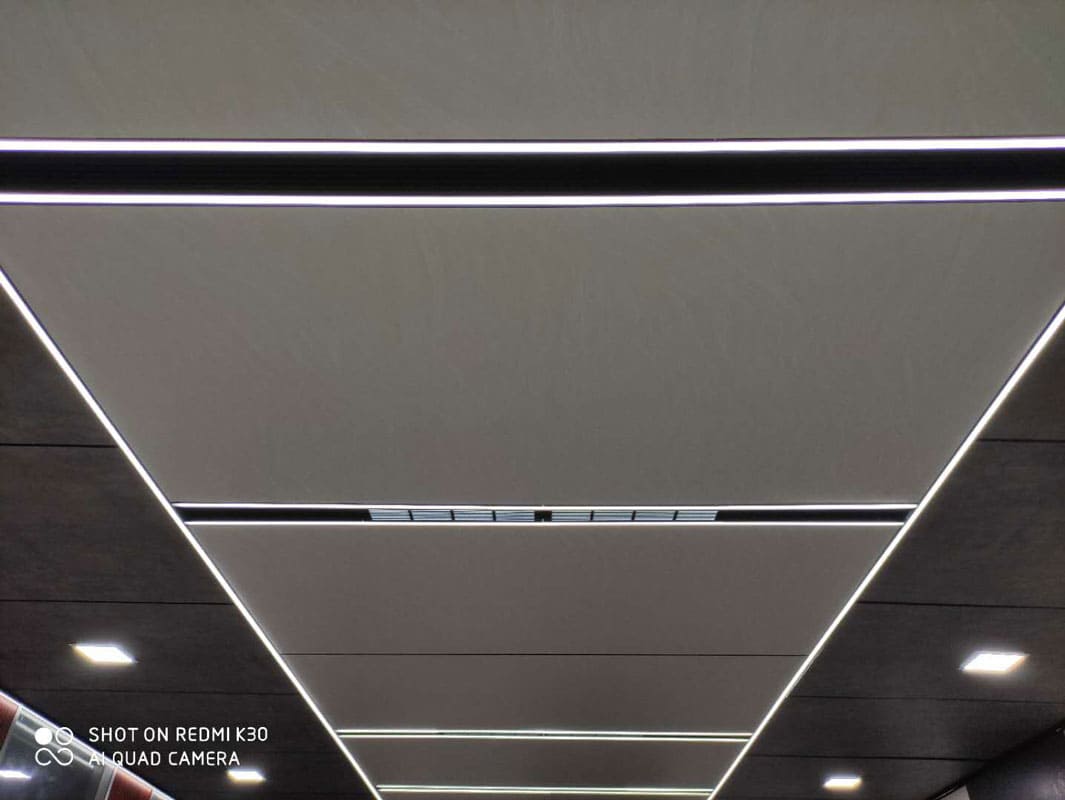

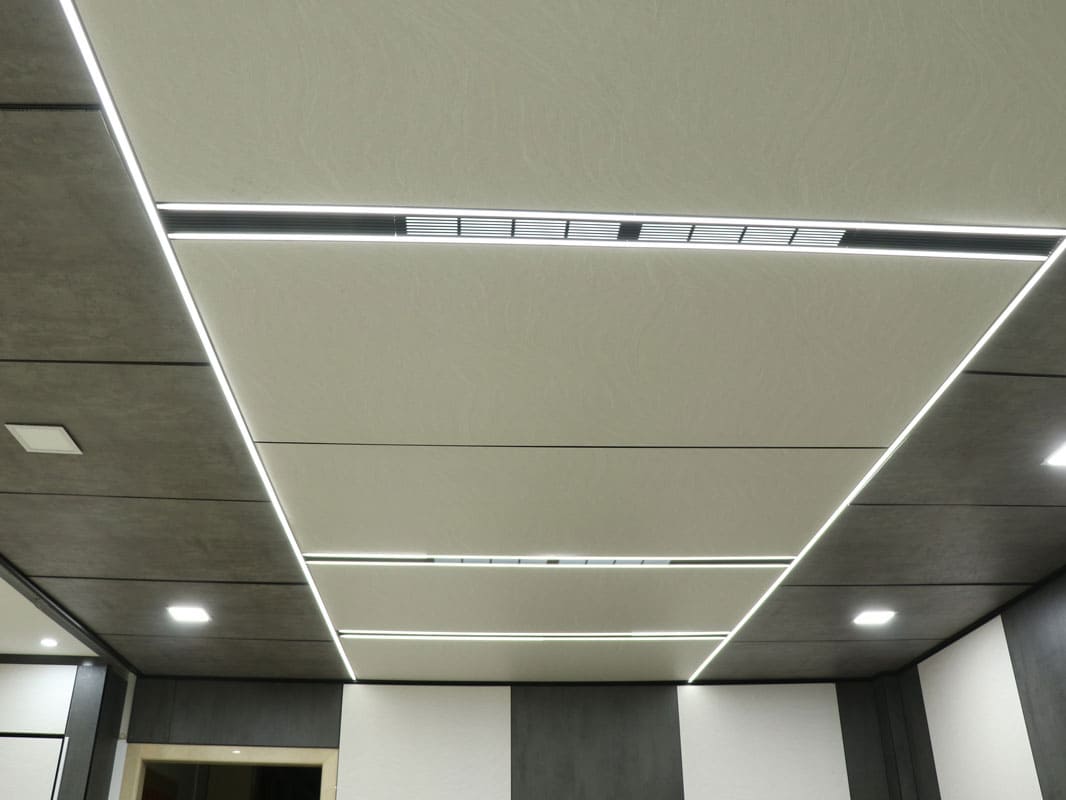

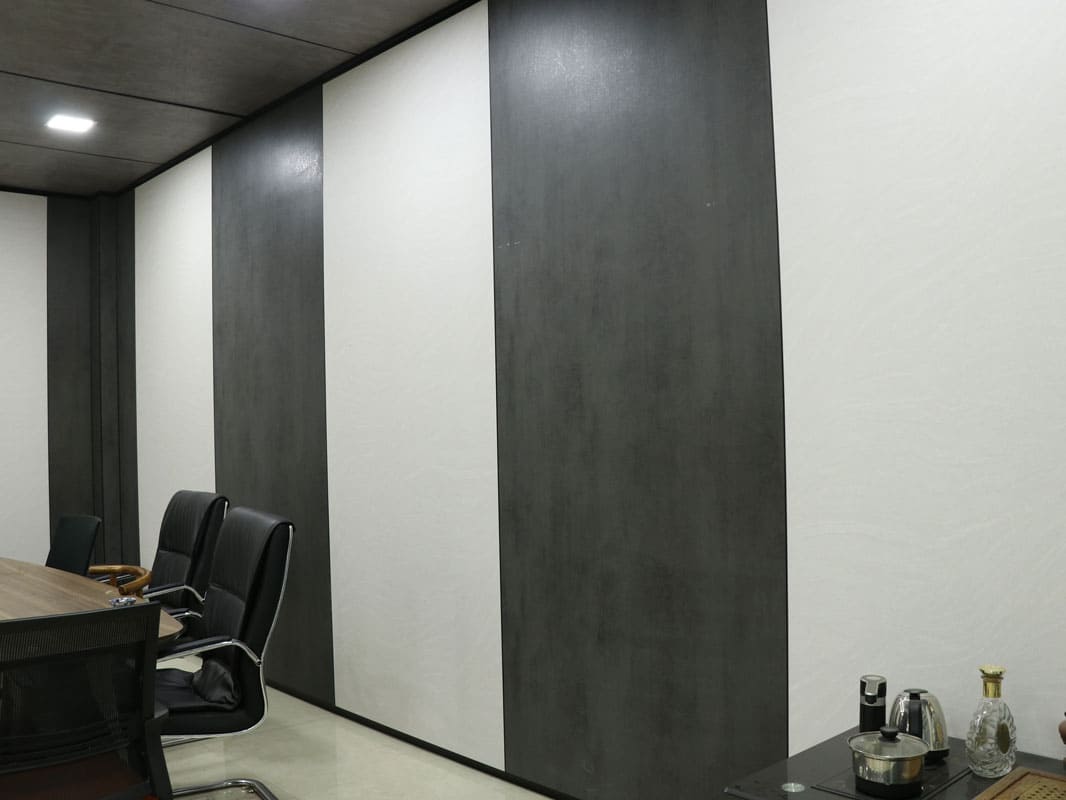

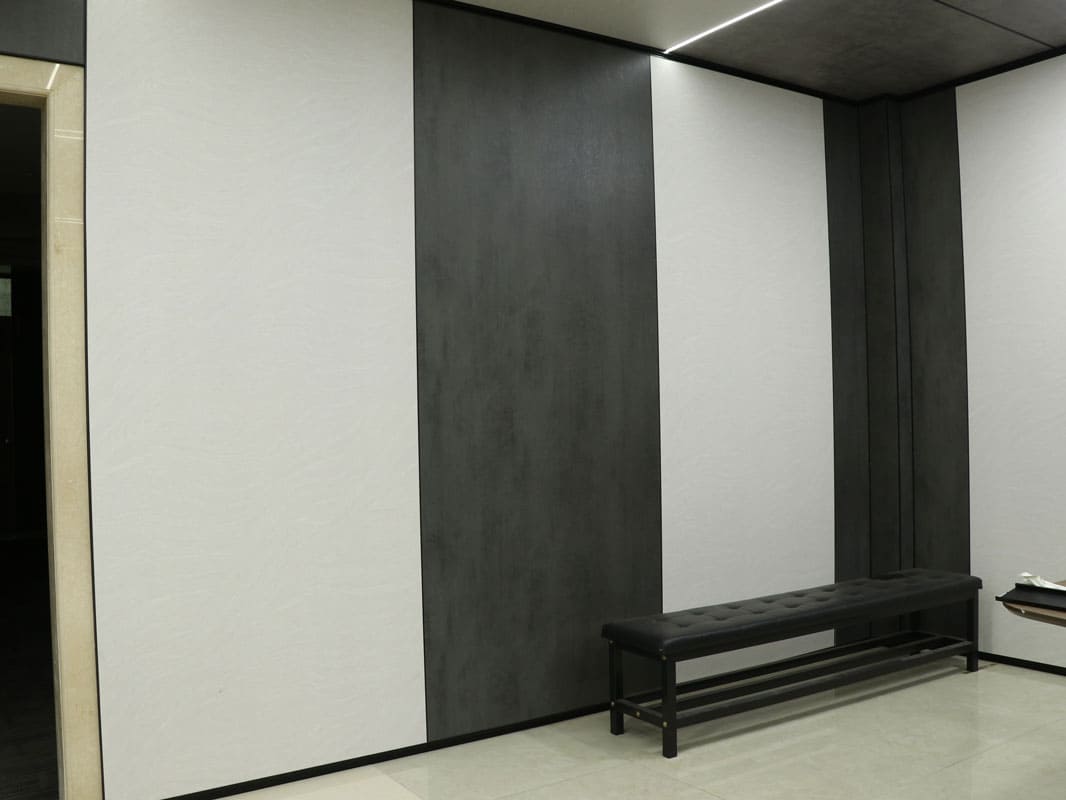

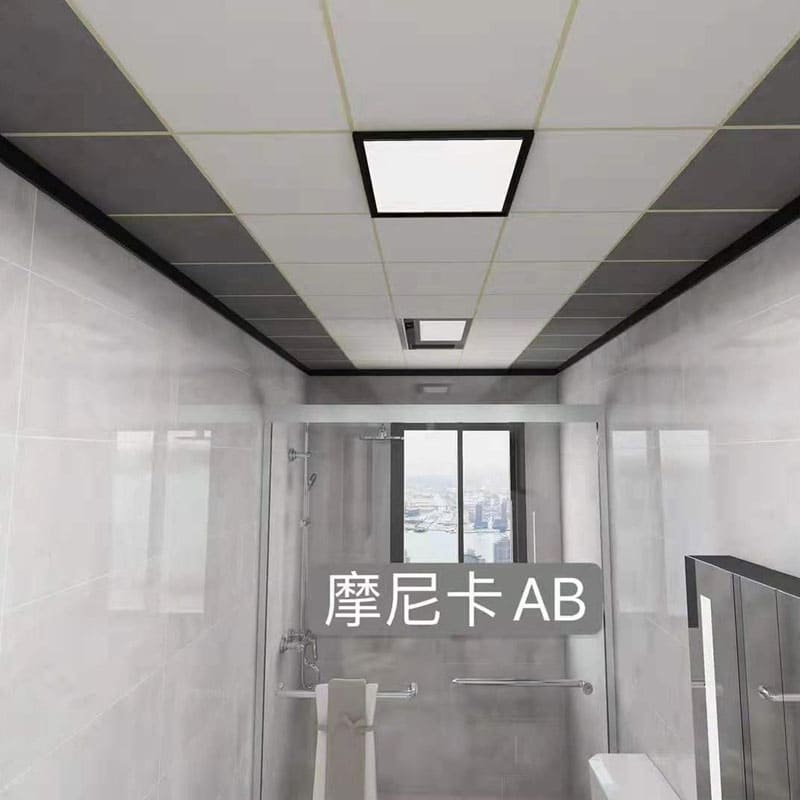

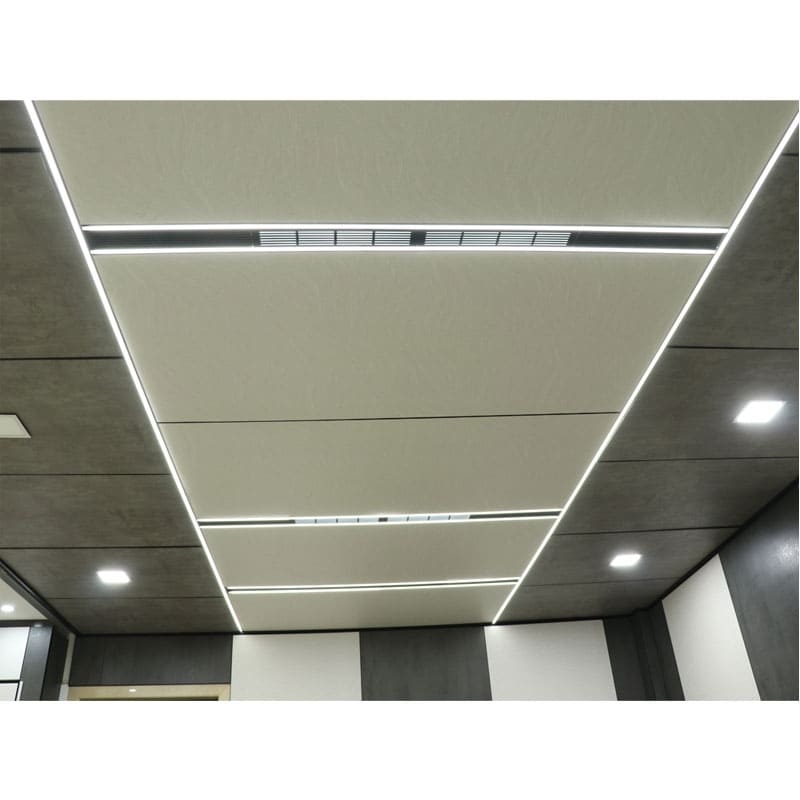

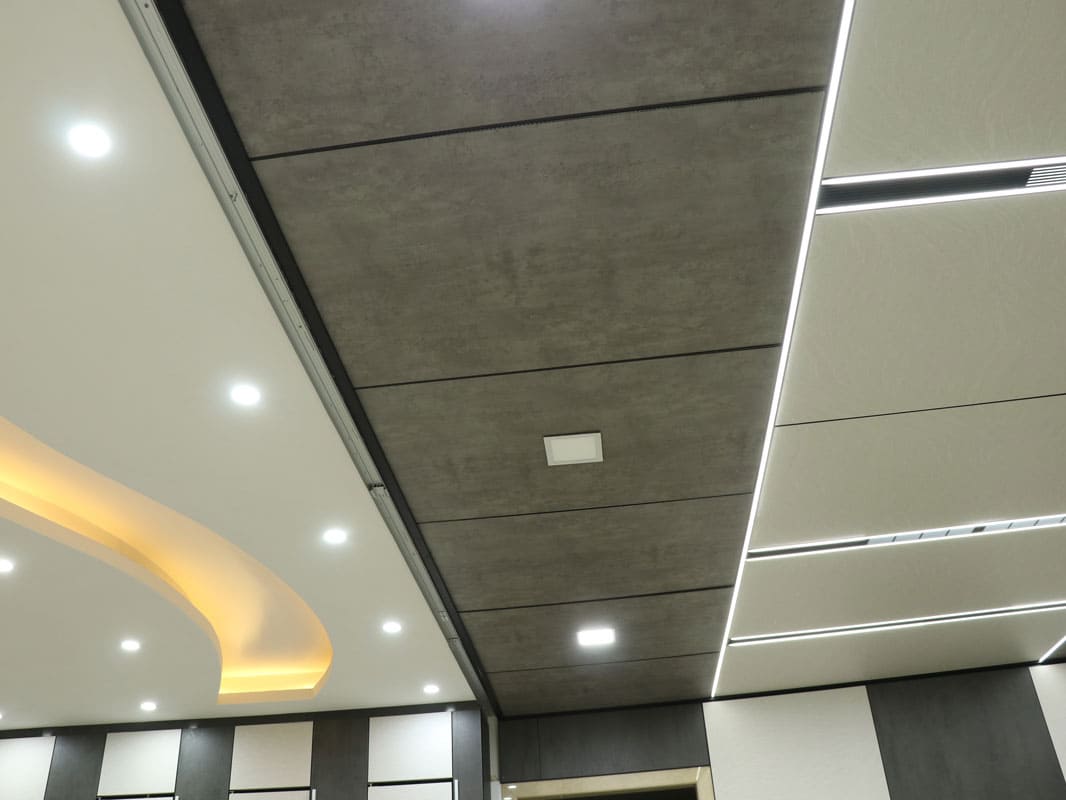

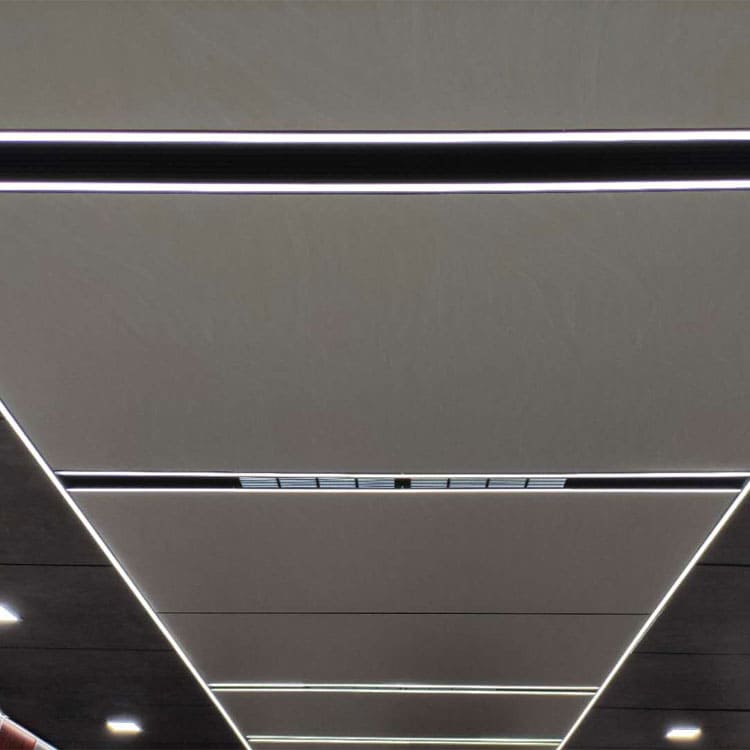

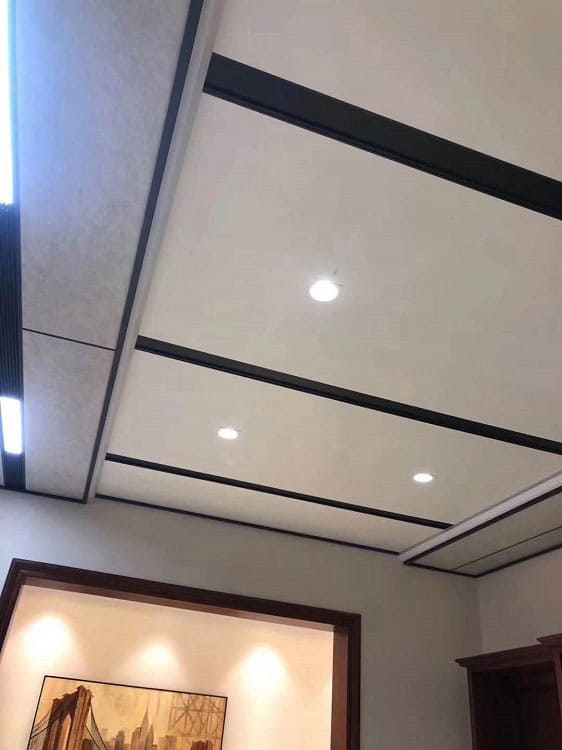

Suitable for shopping malls, office buildings, home and other public places.
Features: Aluminum alloy material, aluminum honeycomb core. Corrosion-resistant, waterproof, fireproof, and durable.

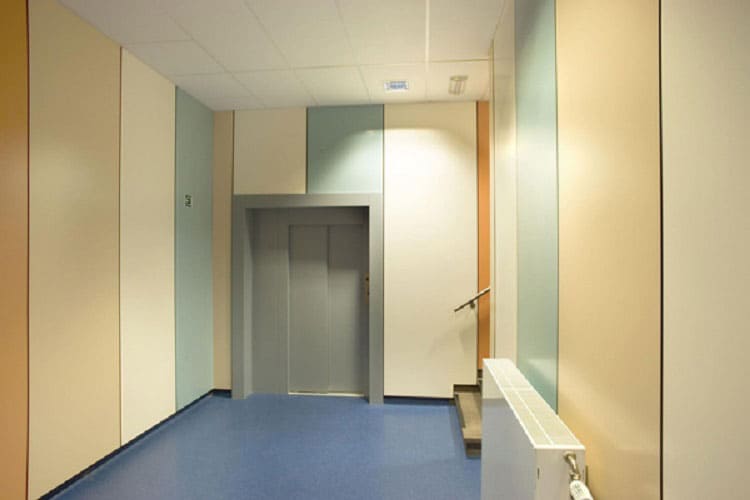

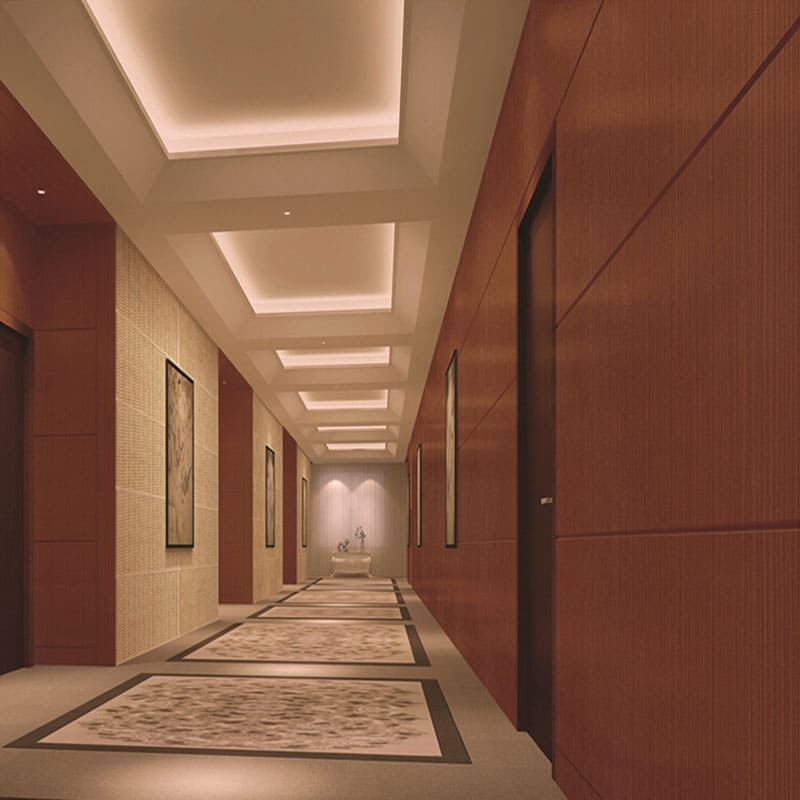

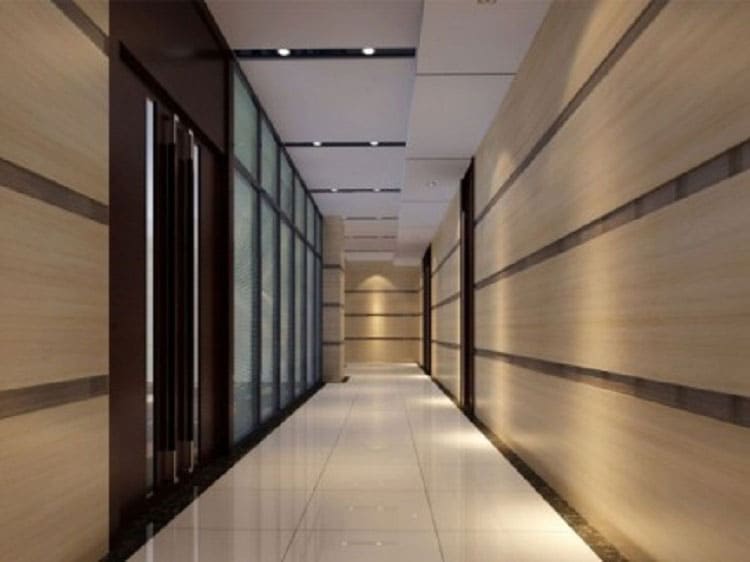

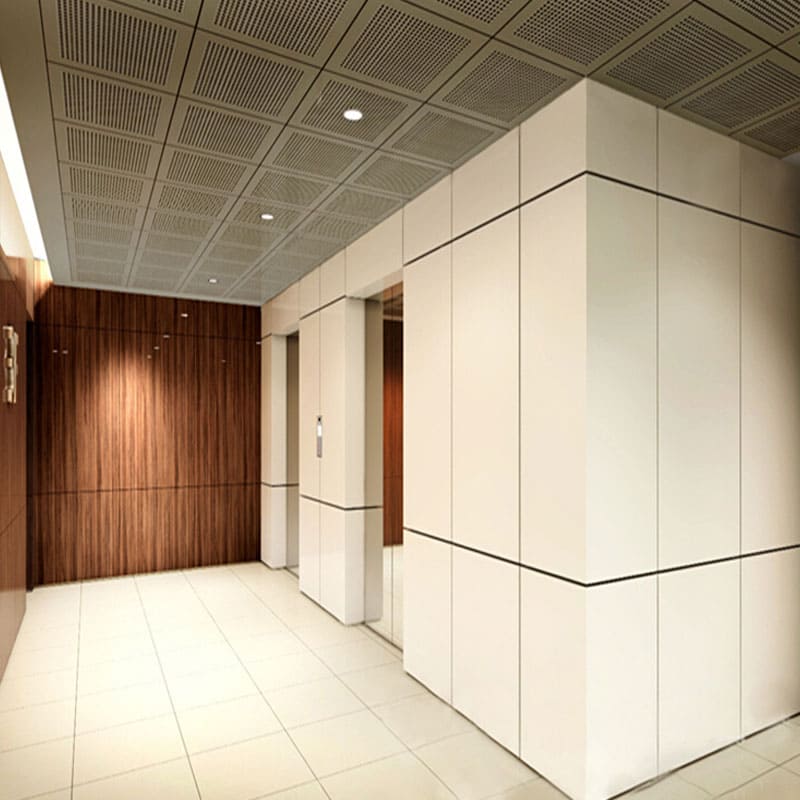

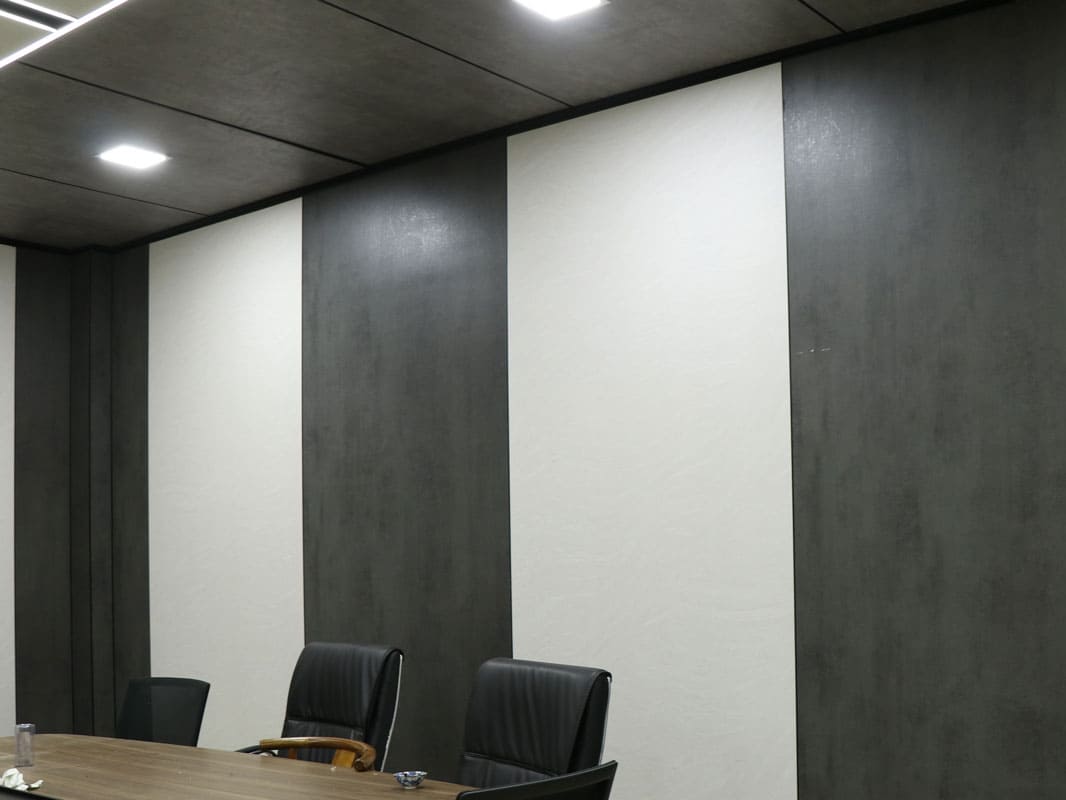

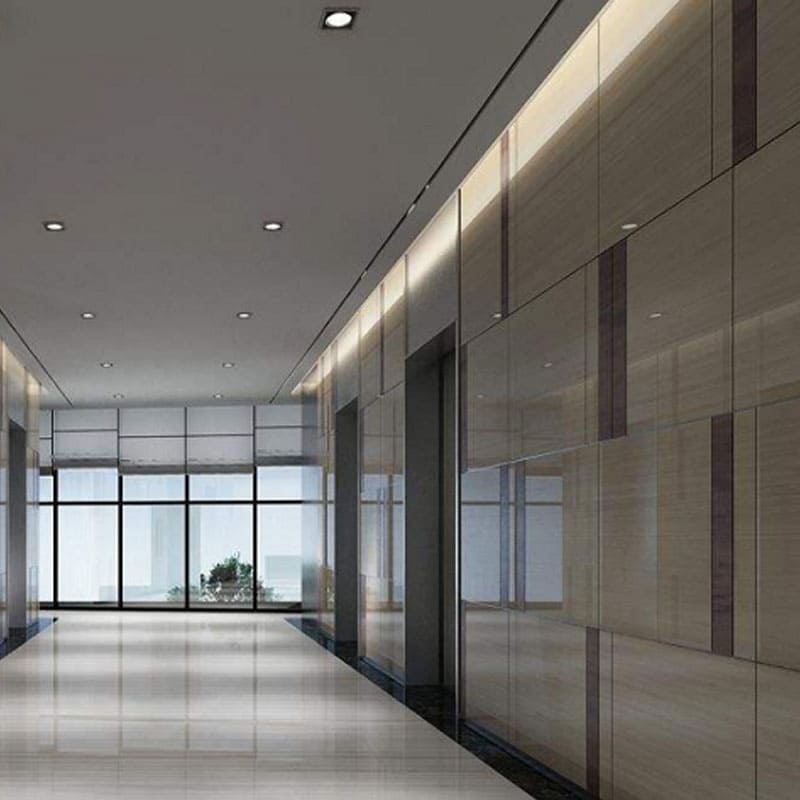

Application：Hotel/Villa/Apartment/Office Building
Size/Color/Thickness: Support customization
Sound insulation, heat insulation, impact resistance.

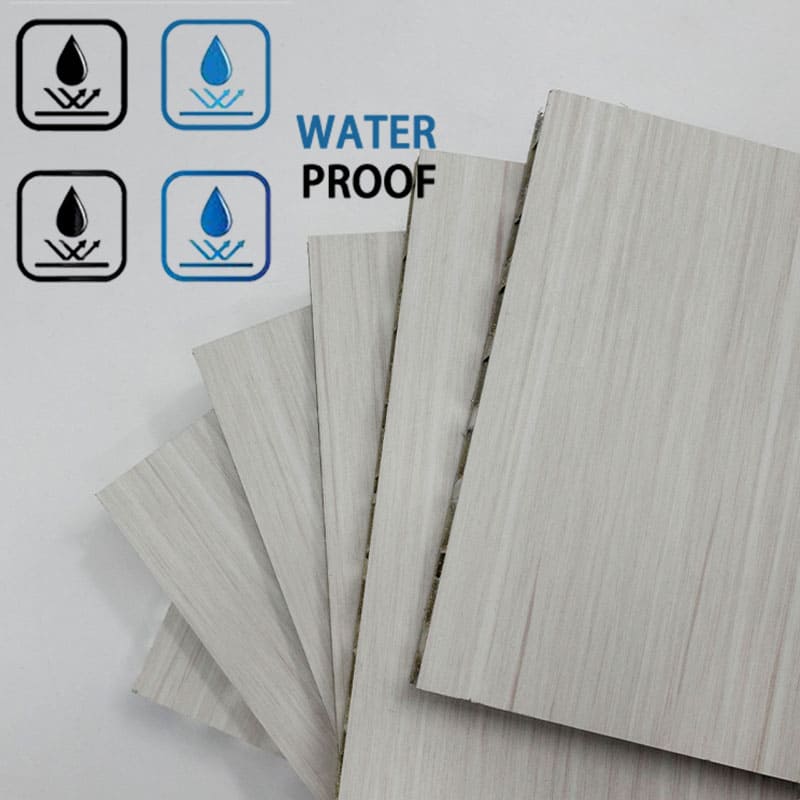

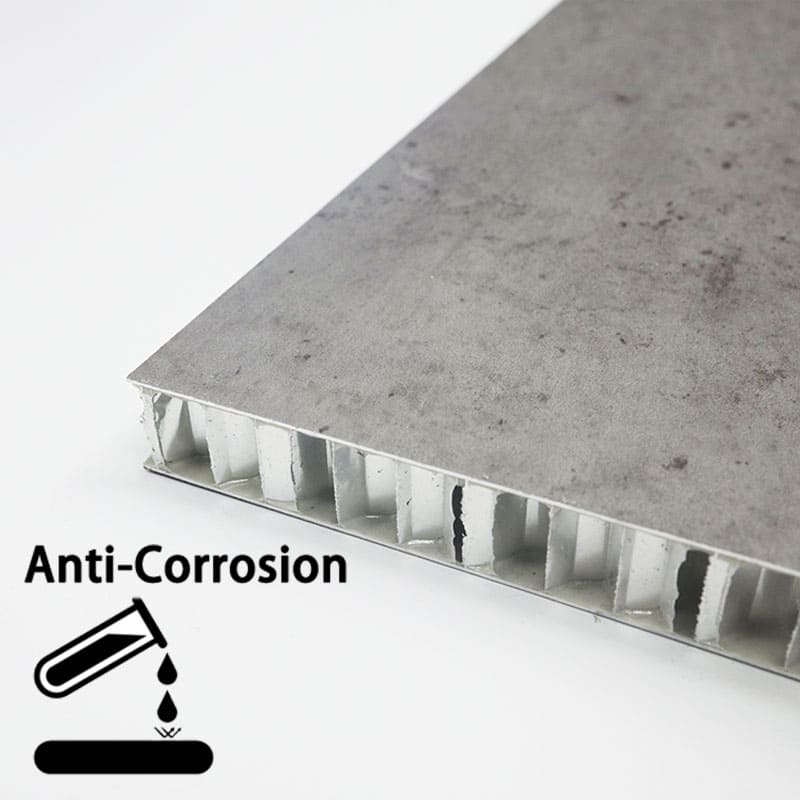

Waterproof, moisture-proof and Anti-corrosion.

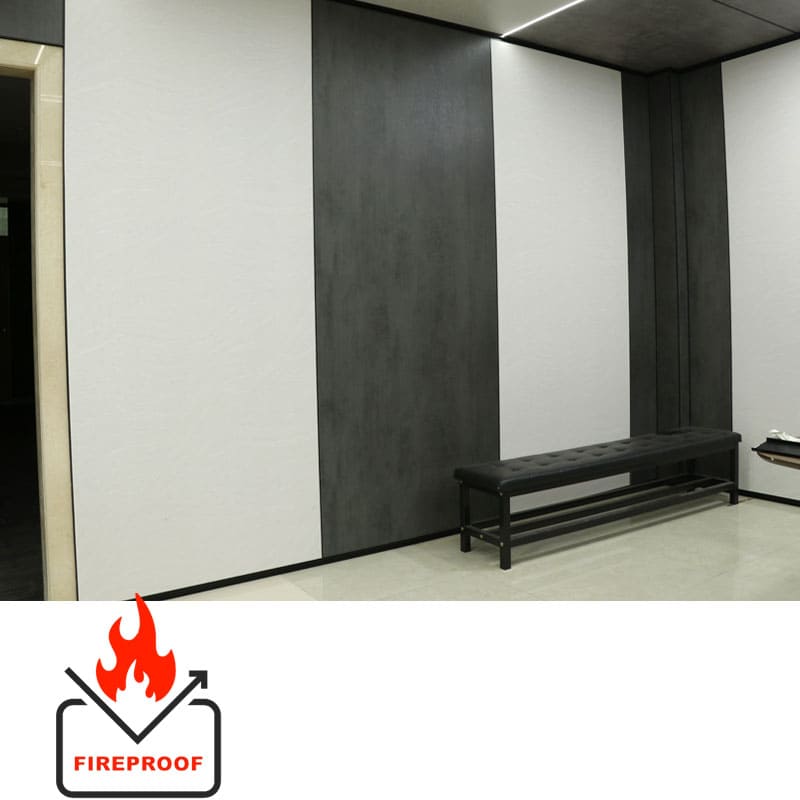

Made of fireproof materials, effectively blocking flame burning.

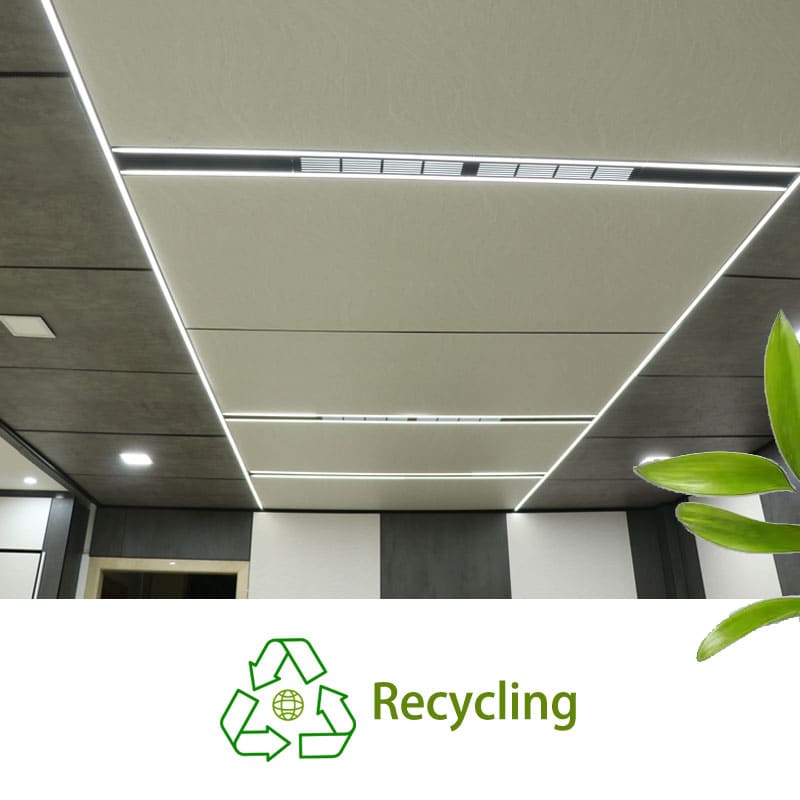

Metal materials can be recycled, economical and environmentally friendly.

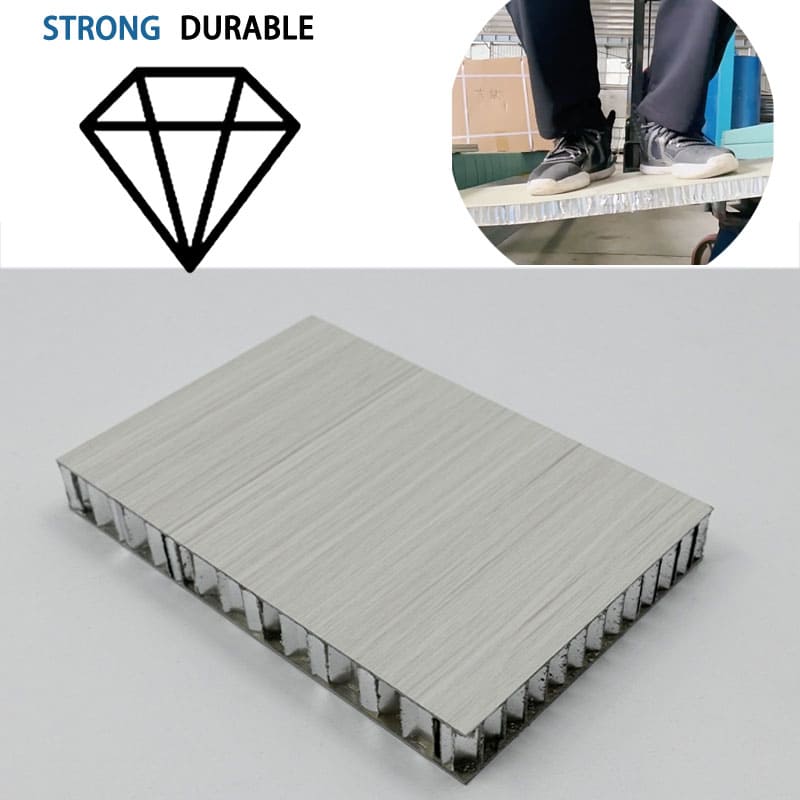

Filling width aluminum honeycomb core, the panel not only lightweight, but also strongy and durable with long service life.

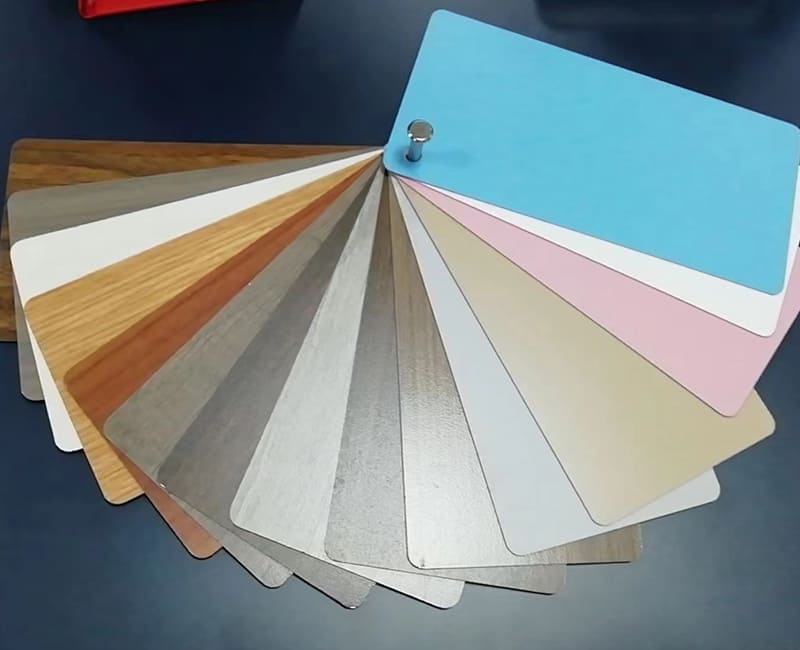

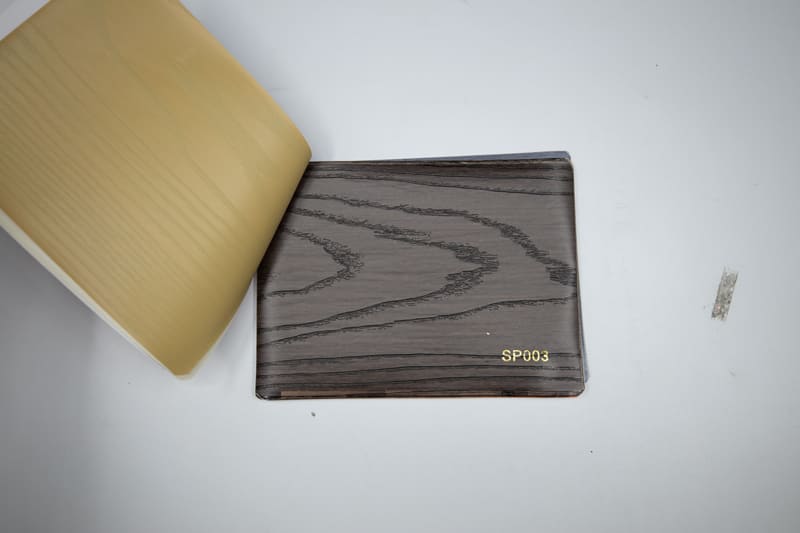

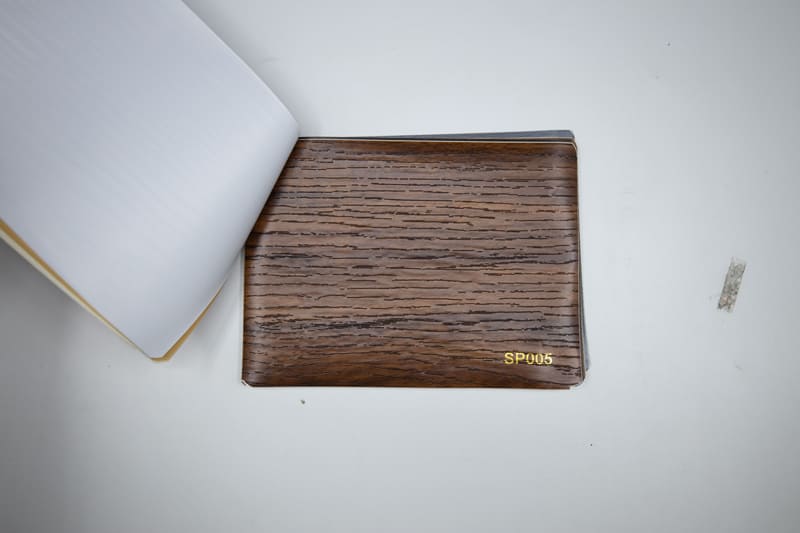

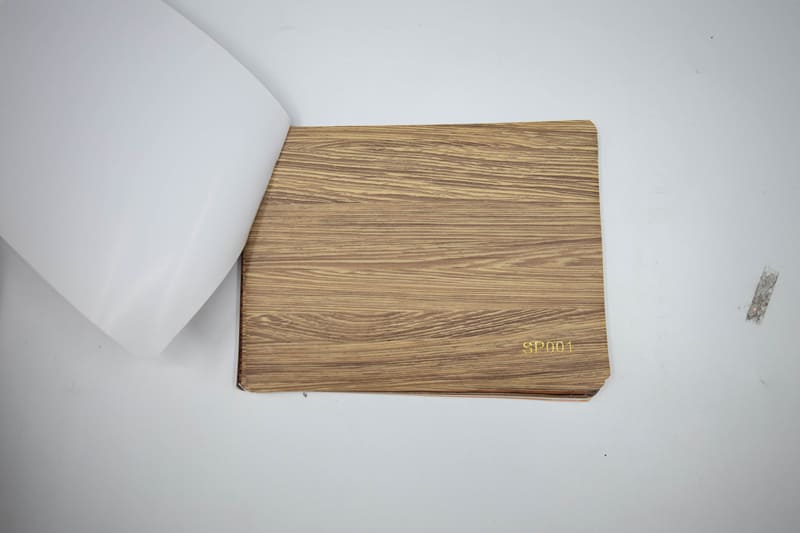

Multiple specifications. Color and Thickness are customizable.
| Material | Aluminum + Aluminum Honeycomb Core + Aluminum |
| Panel Thickness | 4mm, 8mm, 10mm, 15mm, 25mm, Max 200mm |
| Skin Thickness | 0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm |
| Core Foil Thickness | 0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.1mm |
| Width | 1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm |
| Length | 2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
| Honeycomb Core Cell Size(mm) | Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8 ”(9.53mm), 1/2”(12.7mm), 3/4”(19.05mm), 4/5”(20.32mm), 1”(25.9m) |
